The AirSense is a mass spectrometer based on the patented Ion-Molecule Reaction (IMR-MS) and is the multi-purpose model with main focus on applications for an unlimited number of gas components, highest flexibility and robustness.

The EISense is a classic quadrupole mass spectrometer with electron impact ionization (EI-MS).

Ionization takes place at 70 eV, the mass range extends from 1 to 100 amu with a resolution of 1 amu.

Electron impact mass spectrometer (EI-MS) for rapid measurement of H2, N2, O2, H2OandCO2.

The measuring device is equipped with a double sample gas inlet. On the anode side with a gas flow of < 60 ml/min and on the cathode or exhaust gas with a gas flow of < 3000 ml/min.

The HSense is a mass spectrometer based on the principle of electron impact ionization (EI-MS), which has been optimized to achieve fast and reliable measurements of H2 and He.

The TwinSense is a dual ion-molecule reaction mass spectrometer (IMR-MS) in one analyzer.

The TwinSense dual mass spectrometer was developed to measure quickly and simultaneously before and after the catalyst.

The AVL AMA i60 SII exhaust gas measuring system has various gas analyzers for emission testing of diluted exhaust gas and raw exhaust gas from petrol and diesel engines. The dynamic measuring ranges enable analysis of THC, CH4, NO/NO2/NOx,CO2, N2O, NH3 and O2. The measuring system also includes a heated sampling system with pre-filter and boost pump.

The Horiba Mexa One exhaust gas measuring system has various gas analyzers for emissions testing of diluted exhaust gas and raw exhaust gas from petrol and diesel engines. The dynamic measuring ranges enable analysis of THC, NO, NOx,CO2, CO and O2. The heated sample gas pump enables sampling at up to six different measuring points.

Application: The SESAM i60 FT SII enables the dynamic, precise and synchronous measurement of NO, NO2, N2O, NH3, CO,CO2, CH4 as well as alcohols, aldehydes and other compounds with the same device.

The HORIBA MEXA-2100SPCS system determines the number of solid particles in the raw exhaust gas of combustion engines in real time. Particles as small as 10 nm can be detected.

The AVL Micro Soot Sensor with exhaust gas conditioning unit is used for time-resolved measurement of the soot concentration in combustion engines both before and after the particulate filter. The photoacoustic measuring principle enables precise results even for low soot values. The AVL Micro Soot Sensor is additionally equipped with a dilution and a pressure reduction unit.

The AVL Smoke Meter is used for stationary measurement of the soot concentration in the exhaust gas of combustion engines. It works according to the filter paper method and determines the Filter Smoke Number (FSN). The measuring device offers the possibility of using two sampling lines and thus switching between different sampling points.

The AVL Particle Counter Advanced is used for particle number measurement. Sampling is possible both from a CVS tunnel and directly on the raw exhaust gas. The adjustment of the CPC enables a Euro 7-compliant counting efficiency of 65 % (+/-15 %) at 10 nm and >90 % from 15 nm. The counter also has a catalytic stripper.

The Dekati® eDiluter™ Pro is a portable dilution system for particle measurements with an adjustable dilution factor from 1:25 to 1:900. It dilutes samples in two stages, with the first stage being heated. An integrated catalytic stripper removes volatile particles and the overall system has low particle losses. It fulfills EURO6+ requirements and allows measurements up to 1200 °C.

The Palas® VKL 10E dilution system made of stainless steel is suitable for chemically aggressive aerosols and has a fixed dilution factor of 1:10. It requires little compressed air, operates isobarically up to 10 bar back pressure and isothermally up to 120 °C. Compatible with all common particle counters, including simple on-site functional testing.

The Catalytic Stripper (CS) from Catalytic Instruments GmbH & Co. KG is a heated element for removing solid and gaseous semi-volatile components from exhaust gas aerosols from combustion engines. It enables precise measurements of solid particles in accordance with legal requirements and the analysis of the effects of new fuel and lubricant formulations on combustion. The inlet flow is 10 l/min.

Application: Intensified camera for UV applications

Dynamic range: 16 bit

Sensor type: sCMOS Resolution: 2048x2048

Frame rate: 106 fps - 7000 fps

Exposure time: 4 ns - 1 s

Interframe time: 300 ns

Spectral range: 200 nm - 900 nm

Dynamic range: 14 bit

Sensor type: CCD

Resolution: 2040x2048

Frame rate: 14.7 fps - 69.7 fps

Exposure time: 5 ns - 49 days

Interframe time: 180 ns

Spectral range: 320 nm - 1000 nm

Dynamic range: 12 bit

Sensor type: CCD

Resolution: 1392x1040

Frame rate: 17 fps

Exposure time: 100 µs - 80 ms

Spectral range: 400 nm - 850 nm

Dynamic range: 12 bit

Sensor type: CCD

Resolution: 1376x1040

Frame rate: 10 fps - 19.2 fps

Exposure time: 500 ns - 1 s

Interframe time: 500 ns

Spectral range: 290 nm - 1100 nm

Injection analyzer

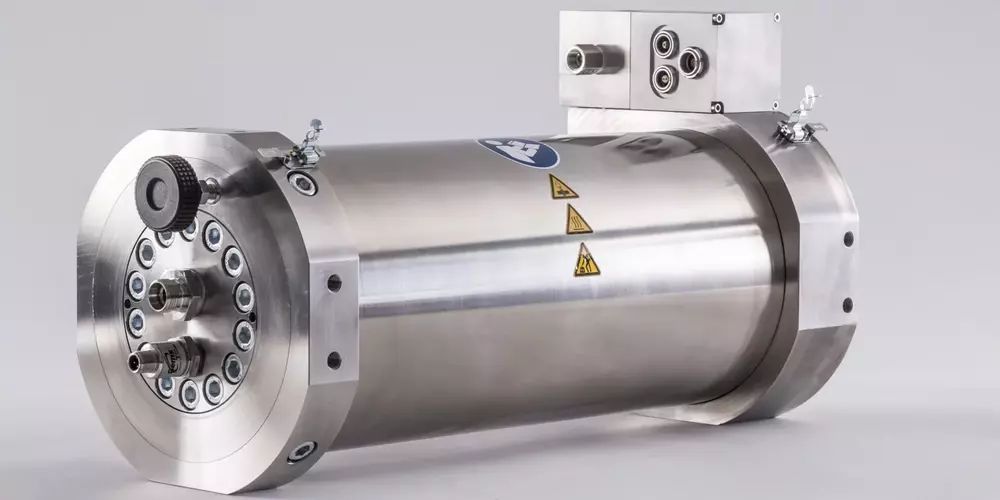

The IAV Cross injection analyzer records the injection behaviour of injectors, including the injected mass and the high-resolution time curve. The measuring principle enables the precise analysis of conventional and alternative fuels and their effects on the injection process. In addition to liquid fuels, the injection of gaseous fuels such as hydrogen and methane can also be investigated in the IAV-Cross.

Injection analyzer

The HDA injection analyzer records the injection behaviour of injectors, including the injected mass and the high-resolution time curve. The media-independent measuring principle enables the precise analysis of alternative fuels and their effects on the injection process. Various liquid fuels such as diesel, HVO, OME, methanol, ethanol and gasoline can be analyzed. Each injection cycle provides detailed measured values for injector and fuel evaluation.

The COM-AD-01 ozone generator from Anseros enables the generation of high-purity ozone from various oxygen-containing, oil-free gases. The ozone gas produced is free of metal particles and therefore suitable for ultra-pure technologies such as semiconductor and medical processes. The ozone capacity is 1 - 4 g O3/h with a maximum ozone concentration of 180 g O3 / Nm3.

The AQ Guard enables continuous analysis of indoor air quality. It measures fine dust from a particle size of 0.15 µm, theCO2 content in the air and also calculates the air quality index. Measured variables: PM1, PM2.5, PM4, PM10, TSP, CN, particle size distribution, pressure, temperature, relative humidity,CO2, infection risk index and air quality index.

The chemiluminescence detector from Eco Physics is used for continuous nitrogen oxide measurement in gases. The two parallel reaction chambers enable simultaneous measurement of NO and NOx and therefore also provide exact NO2 values. Measuring range: 0 - 100 ppb / 0 - 50,000 ppb.
